Box gutters on commercial flat roofs handle thousands of gallons of water during every Central Florida storm. When they fail, the damage goes straight into your building. Protech Roofing designs, installs, repairs, and maintains box gutter systems for businesses across Hernando County and the Tampa Bay region. Call (352) 605-0696 for a free commercial roof and gutter assessment.

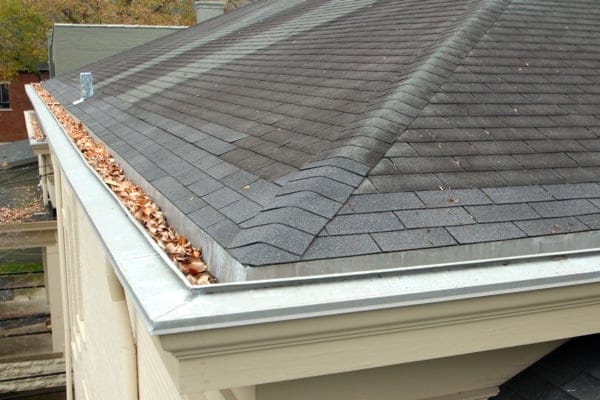

Why Box Gutters Fail on Florida Commercial Buildings
Box gutters are built into the roof structure itself, hidden behind parapet walls or recessed into the roof edge. They are the standard drainage solution for flat and low-slope commercial roofs because hanging K-style or half-round gutters cannot handle the volume of water that collects on a 10,000 square foot roof during a Florida thunderstorm.
The problem is that Central Florida receives some of the heaviest rainfall in the continental United States. The 100-year, 1-hour rainfall intensity for Hernando County is approximately 4.5 inches per hour. During peak 20-minute bursts, that rate can spike to 7.3 inches per hour. A box gutter system that was sized correctly for a building in Ohio or North Carolina will overflow repeatedly in Spring Hill or Brooksville.
When box gutters overflow or leak, the water does not run harmlessly down the side of the building like it does with exposed gutters. It goes directly into the wall cavity, ceiling assembly, or building interior. For a warehouse, that means damaged inventory. For a medical office, that means mold risk and health code violations. For a restaurant, that means a closed dining room and lost revenue.
Most box gutter failures we see on commercial buildings in Hernando and Pasco County come down to three root causes: the gutter was undersized for Florida rainfall when it was originally installed, the seams have corroded or separated after years of standing water, or debris buildup has blocked the primary drains and the building has no functioning secondary overflow system.
Types of Box Gutter Systems for Flat Roofs
Not every box gutter is the same. The type installed on your building determines how it drains, how it connects to the roof membrane, and what repair options are available.
Parapet-Integrated Box Gutters
These are the most common type on commercial buildings in Central Florida. The gutter trough sits at the junction where the flat roof meets the parapet wall. Water flows along the trough to internal drain pipes or through scuppers that penetrate the parapet. When these fail, the repair often involves relining the entire trough with a compatible membrane material rather than replacing the metal box itself.
Built-In (Concealed) Box Gutters
Built into the roof edge framing, these gutters are completely hidden from view. They provide a clean architectural look but are harder to inspect and maintain because you cannot see them from ground level. Many older commercial buildings along US-19 in Spring Hill and the Brooksville industrial corridor have this style. Problems often go undetected until interior water stains appear.
Valley Box Gutters
Where two roof sections meet at a low point, a valley box gutter collects runoff from both slopes. These handle the highest water volume of any gutter type because they receive flow from two directions simultaneously. Undersizing here is the most common design error we encounter during commercial roof inspections.
Through-Wall Scupper Systems
Rather than routing water to internal drains, scuppers are openings cut through the parapet wall that allow water to exit directly to the building exterior. Florida Building Code requires scupper width equal to the circumference of the roof drain that would otherwise serve that area. Many older buildings have scuppers that were sized before current code standards and need to be enlarged during a re-roof.
Materials: What Your Box Gutter Should Be Made Of
The material your box gutter is made from determines its lifespan, maintenance requirements, and how it interacts with your roof membrane.
| Material | Lifespan | Best For | Watch Out For |
|---|---|---|---|
| Galvanized Steel | 15-20 years | Budget-friendly repairs | Rusts where water pools, needs recoating every 5 years |
| Aluminum | 20-30 years | Salt-air coastal areas like Hernando Beach | Expands/contracts more than steel, seams can open |
| Stainless Steel | 30-50 years | High-value buildings, restaurants | Higher upfront cost, worth it for longevity |
| Copper | 50+ years | Historic or premium properties | Patina can stain adjacent surfaces, very expensive |
| TPO/PVC Liner | 20-25 years | Relining existing gutters during re-roof | Must be heat-welded by certified installer |
| EPDM Rubber Liner | 15-20 years | Budget reline option | Glue seams fail in standing water, heat-welded is better |
For most commercial buildings in Hernando and Pasco County, we recommend stainless steel for new installations and TPO lining for relines. The heat-welded seams of TPO create a continuous waterproof membrane that eliminates the joint failures that plague glued EPDM and soldered galvanized systems. When we install a new TPO roof, we integrate the box gutter liner into the field membrane as a single welded system.
Sizing Box Gutters for Central Florida Rainfall
Gutter sizing is where most commercial drainage problems begin. A contractor who builds gutters based on northern state standards will install a system that is dramatically undersized for Florida conditions.
The standard sizing formula uses the Rational Method: flow rate equals the runoff coefficient multiplied by rainfall intensity multiplied by drainage area. For commercial roofing, the runoff coefficient is 0.95, meaning 95% of the rain that hits the roof ends up in the gutter.
Here is what that means in practical terms for Central Florida buildings:
| Roof Drainage Area | Required Flow Rate (4.5″/hr) | Minimum Gutter Size | Recommended for Florida |
|---|---|---|---|
| 2,500 sq ft | 1.05 GPM per sq ft | 4″ x 5″ box | 5″ x 6″ box with overflow scupper |
| 5,000 sq ft | 2.10 GPM per sq ft | 5″ x 6″ box | 6″ x 8″ box with dual downspouts |
| 10,000 sq ft | 4.20 GPM per sq ft | 6″ x 8″ box | 8″ x 10″ or split into two runs |
| 20,000+ sq ft | 8.40 GPM per sq ft | Custom engineered | Multiple gutter runs with internal drains |
Florida Building Code also requires a secondary overflow system sized to handle the full 100-year, 60-minute rainfall assuming every primary drain is completely blocked. This means every parapet roof needs either overflow scuppers or secondary roof drains installed at a higher elevation than the primary drains. The secondary overflow must discharge in a location visible to building occupants or maintenance staff so a blockage gets noticed before the roof structure is overloaded.
Common Box Gutter Problems and Repair Options
Seam Leaks
Soldered or glued seams are the weakest point in any box gutter. Standing water accelerates corrosion at joints and dissolves adhesives over time. The fix depends on severity. Isolated seam failures can be patched with compatible sealant. Widespread seam deterioration calls for a full reline with heat-welded TPO or PVC membrane that eliminates seams entirely.
Ponding Water
Box gutters need a minimum slope of 1/16 inch per foot toward the drain point. Over time, building settlement, thermal cycling, and fastener corrosion can flatten the gutter run. When ponding occurs, we re-establish the proper slope by shimming the gutter brackets or, in severe cases, re-fabricating the gutter trough with built-in slope.
Corrosion and Rust-Through
Galvanized steel gutters in Florida typically develop rust-through at the 15 to 20 year mark, especially where water pools. Pinhole leaks can be patched with roofing cement as a temporary measure, but once you have three or more active leaks, relining or replacement is the more cost-effective path.
Debris Buildup and Drain Blockage
Leaves, roofing granules, and airborne debris accumulate in box gutters faster than in exposed gutters because the trough is not visible from ground level. Blocked drains cause water to back up against the parapet wall, eventually finding its way through any gap in the flashing or membrane. A maintenance program with monthly cleanouts prevents the majority of box gutter failures we see on commercial buildings.
| Repair Type | Cost Range | When to Choose |
|---|---|---|
| Spot patch and seal | $150 – $500 | 1-2 isolated pinhole leaks, gutter otherwise sound |
| Full reline (TPO/PVC) | $900 – $1,900 | Multiple seam failures, surface corrosion but structure intact |
| Partial replacement | $2,000 – $6,000 | Rust-through in one section, rest of run still serviceable |
| Full replacement | $6,000 – $27,000 | Widespread corrosion, structural sagging, gutter over 20 years old |
The general rule: if repair costs exceed 50% of replacement cost, replace the gutter. A new box gutter with proper sizing, slope, and membrane integration will last 25 to 50 years depending on material, while patching a failing system buys you 2 to 5 years at best.

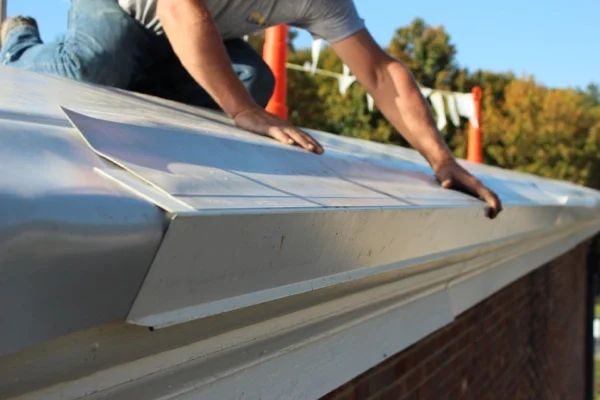

Box Gutter Maintenance Programs
Most commercial box gutter failures are preventable with regular maintenance. We offer semi-annual maintenance programs for commercial building owners in Hernando County, Pasco County, and the surrounding areas that include:
- Debris removal and drain clearance from all gutter runs, downspouts, and scuppers
- Slope verification to confirm water flows to drain points without ponding
- Seam and flashing inspection with probing at suspected weak points
- Secondary overflow testing to verify backup drains and scuppers are clear and functional
- Bracket and hanger check to confirm spacing meets 24 inch maximum and no fasteners have corroded or pulled loose
- Photo documentation of gutter condition for your maintenance records and insurance file
We schedule maintenance visits before and after hurricane season, which aligns with the two periods of heaviest rainfall in Central Florida. Building owners who follow a semi-annual program typically get 5 to 10 additional years from their box gutter system compared to those who only call when a leak appears.
FAQ
Frequently Asked Questions
How do I know if my commercial building has box gutters?
+
How often should commercial box gutters be cleaned?
+
Can box gutters be relined instead of replaced?
+
What size box gutter do I need for my building in Florida?
+
Does Protech Roofing handle commercial gutter work?
+
How much does it cost to replace box gutters on a commercial building?
+
